Brake details:
  • Front 300x30 vented discs with 4 pot alloy calipers.
  • Rear 280x26 vented disks with 4 pot alloy calipers.

The brake and steering system is all manual, so no brake booster vacuum pump is needed.

A few shots of the disk brakes partially installed.

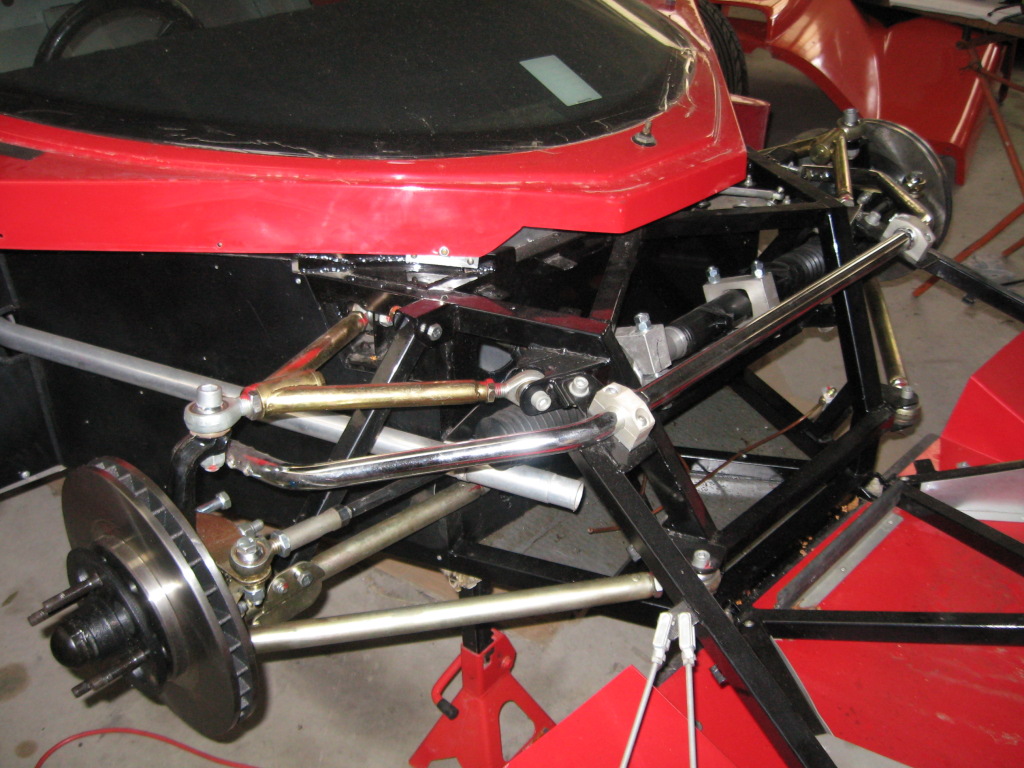

  • Front disks attached:

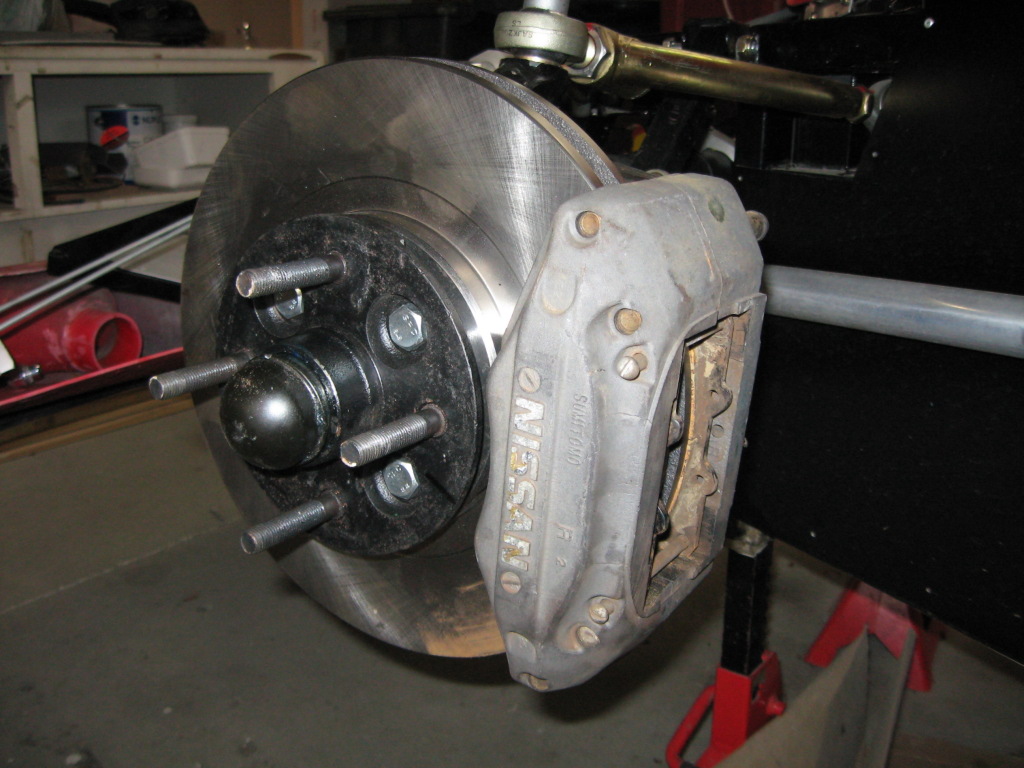

  • Front Caliper:

-- PhilipCourt - 30 Jan 2008
