I have got myself a Vax! It was used for processing meteorological data at Whenuapai air base, but they no longer use it so in Janurary 2001, they gave it away.

I must thank Antony Wardle for offering the Vax and organising with the air base staff for me to get it and also Maurice at Waitemata Weather for helping load the machine on the trailer.

Getting the Vax turned out to be something of an adventure.

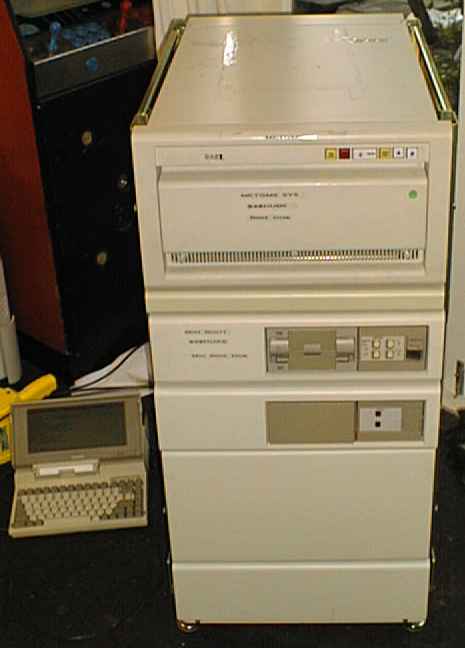

It is a microVAX II dating from around 1987. It sure makes a huge amount of noise when you switch it on, I haven't counted the number of fans in the unit but there are probably about 10. The big disk is very noisy. It also has the biggest 5.25" MFM hard disk drive I've ever seen, I think it might be quad hight. It's the size of two cdrom drives stacked on top of each other. It also has an RX50-AA twin 5.25" floppy drive.

Initial Booting was a challenge.

Antony Wardle said that the machine made a terrible squealing noise last time he turned it on, suggesting that a disk had crashed. Currently it makes some noises that you wouldn't want your pc to make, but it doesn't make any noise that I would describe as squealing. With luck the drive is ok, or at least it can be reformatted.

It has the following cards in the two Q-Bus assemblies under the big disk. This information is from a bigger list at the Vax Archive. The links point to Hamster's information on individual Q-Bus components at his DIGITAL$RESOURCES page, or to the Vax Archive.
ModelOptionDescription
First cabinet
M7606-AFKA630-AFMicroVAX II with 1-Mbyte, floating point, time of year clock, boot/diagnostic ROM (Q22-bus)
M7609-AFMS630-CA8-Mbyte parity 36-bit RAM for microVAX II
M7516DELQA-MEthernet interface (replaces DEQNA)
Clearpoint 8Mbyte ram card
M7957DZV114-line double-buffered async EIA MUX (With modem control, 50 to 10-Kbaud)
M7555RQDX3Winchester and floppy disk controller (RX50/RD50-54/RD31/RD32)
M9047Grant continuity
M94041st Q22-bus cable connector, no terminators
Second cabinet
M94052nd Q22-bus cable connector, no terminators, mirror image
M9047Grant continuity
M7164KDA50-QQ-bus SDI disk adaptor, Q-22 (1 of 2)
M7165KDA50-QQ-bus SDI disk adaptor, Q-22 (2 of 2) (For RA60/80)
